SPD for Data Line |
|
ST Series |
|
![](images/back1.gif) |
|
|
Description : |
Features:
1 high lightning current flow capacity
2 wide working frequency
3 good radio Frequency signal transmission performance
4 small standing wave ratio, low insertion loss
5 easy installation and maintenance

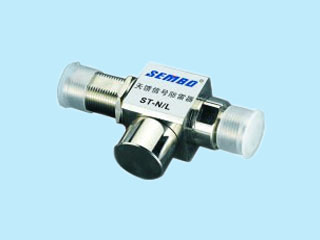

ST series switch type spd is used for protecting the wire and transceive equipments from the damage caused by over voltage. Apply to the coaxial feed system signal lightning surge protection, such as wireless communication, mobile base station, microwave communication, broadcasting television,etc.
Type
|
ST-F
|
ST-BNC
|
ST-N
|
Maximum continuous operating voltage
|
64V
|
Maximum continuous operating voltage
|
10kA
|
Max. discharge current
|
20kA
|
Voltage protective level
|
≤600V
|
The response time tA
|
≤100ns
|
The largest transmission rate P
|
150W
|
200W
|
400W
|
Bandwidth fG
|
0-2500MHz
|
Insertion loss aE
|
≤0.3dB
|
Standing wave ratio
|
≤1.2
|
Characteristics impedance
|
50Ω
|
Temperature range
|
-40℃…+80℃
|
Interface type
|
F
|
BNC
|
N
|
Enclosure materials
|
brass
|
Shape size
|
Φ21x48mm
|
57x29x25mm
|
60x29x25mm
|
Protective level
|
IP20
|
|
|
|
|
