Description : |

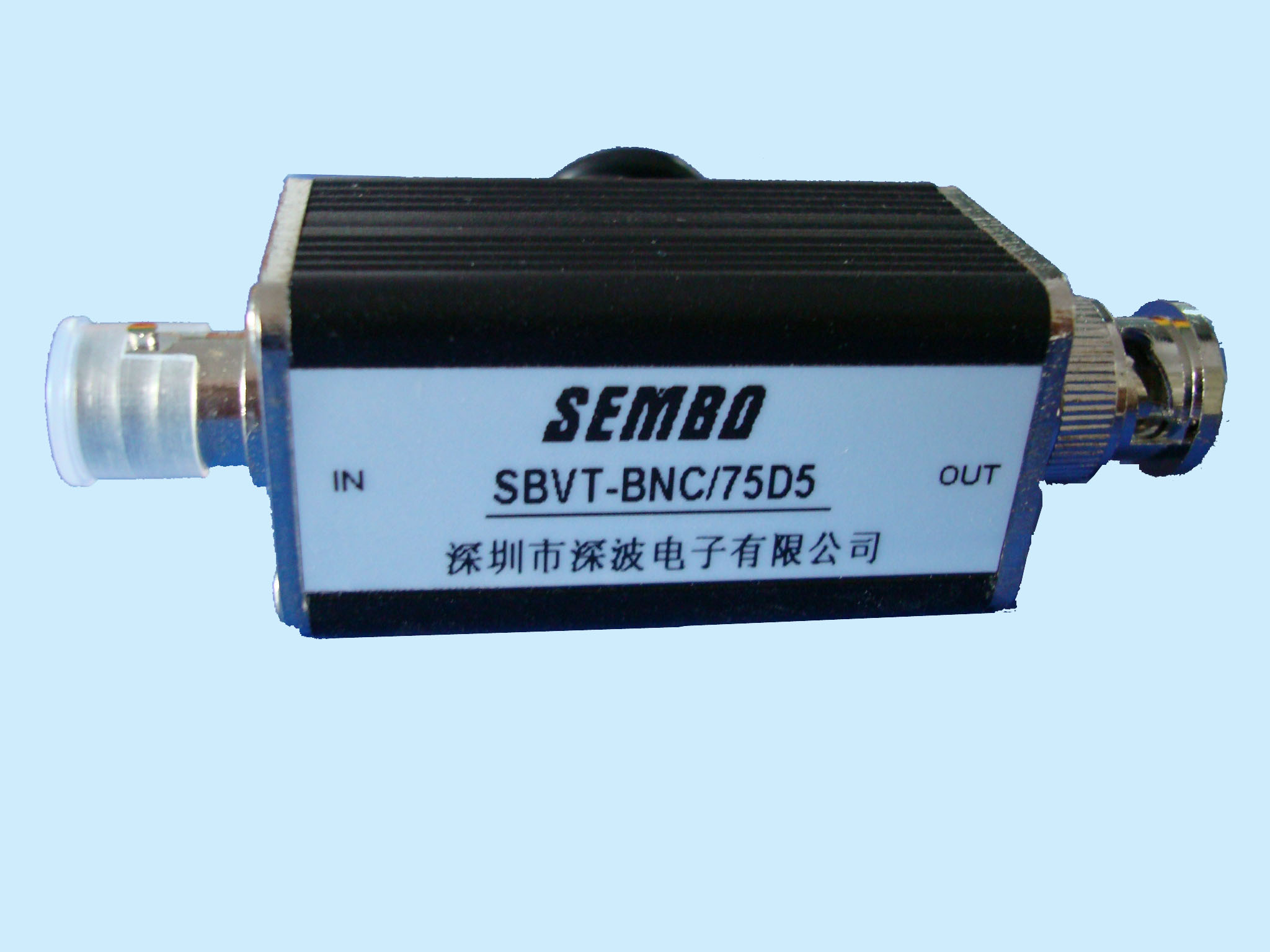

Coaxial Type Signal SPD
Features:
1 large flow capacity, wide working frequency band
2 low insertion loss and residual depression, fast response time
3 good signal transmission performance
4 multilevel protection
5 simple structure, easy installation and maintenance
SX-BNC Coaxial Type Signal SPD is used for the lightning surge prtection to the coaxial signal transmission devices, it applies to protect the coaxial communication equipment, such as cable television system, vedio monitoring system, security system, and computer network system, etc.
Type
|
SX-BNC
|
SX-BNC/16
|
SX-F
|
Protection approach
|
1路
|
16路
|
1路
|
Nominal operating voltage
|
5V
|
Maximum continuous operating voltage
|
8V
|
Nominal discharge current
|
5kA
|
Max. discharge current
|
10kA
|
Line-shielding line voltae protective level
|
≤25V
|
Shielding line-PG voltage protective level
|
≤600V
|
The response time tA
|
≤1ns
|
Bandwidth fG
|
300MHz
|
Insertion loss aE
|
≤0.5dB
|
Temperature range
|
-40℃…+80℃
|
Characteristics impedance Z
|
75Ω
|
Interface type
|
BNC
|
F
|
Enclosure materials
|
shielding metal
|
Installation
|
35mmDIN rail/ desktop
|
19” rack
|
35mmDIN rail/ desktop
|
Shape size
|
68x25x25mm
|
485x110x45mm
|
68x25x25mm
|
Protective level
|
IP20
|
|
|
|
|
