 SPD for Power Line |
|
|
| SY Series |
| |
 |
|
| |
| Description : |
Features:
1 integration design, adopt multilevel pressure sensitive clamping parallel technology
2 large flow-through capacity, low residual depression, fast response time
3 with the separate equipment of loading overcurrent, overheating and failure
3 total protecion of commen code and differential module
4 indicate the working state and count the overvoltage, offer the alarm and remote communication
5 Varistor connected in series with gas discharge tubes to eliminate leakage current, higher security
6 complete connected line
7 Th box is made of high quality steel, fire-retardant and anti-corrosion

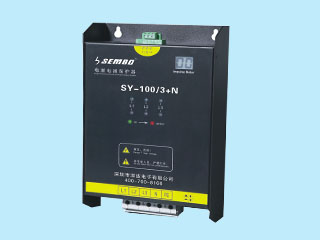

SY series power lightning protection box is classified by the experiment of classifying of SPD I/II level, and as a complex three-phase power thunder spd, applying to the I level and II level of the loaded devices on the power curcuit from the damage caused by overvoltage even the direct lightning flash, it is installed on the LPZOA-2 interface.
|
Type
|
SY-120/380
|
SY-100/380
|
SY-100/380
|
SY-100/380
|
|
Nominal operating voltage
|
380V
|
|
Maximum continuous operating voltage
|
385V
|
|
Nominal discharge current
|
60 kA
|
50 kA
|
40 kA
|
30 kA
|
|
Max. discharge current
|
120 kA
|
100 kA
|
80 kA
|
60 kA
|
|
Voltage protection level
|
≤1.9kV
|
≤1.7kV
|
≤1.5kV
|
≤1.4kV
|
|
The response time tA
|
≤25ns
|
| Backup fuse |
250A
|
125A
|
|
Temperature range
|
-40℃…+80C, relative humidity ≤95%
|
|
Install wiring way/Specification
|
parallel/strand wire 35mm2
|
|
Working instructions
|
sound and light alarm/ remote communication
|
|
Installation
|
Indoor wall
|
|
Protective level
|
IP20
|
|
Shape size
|
285x180x70mm
|
|
|
|
|
