FEATURES
|
|
|
|
|
|
|
|
| Ø 350 Watts Peak Pulse Power per Line (tp=8/20µs) |
| Ø Protect four I/O lines. |
 |
| Ø Low clamping voltage. |
| Ø Working voltage：5V. |
| |
|
|
|
|
|
|
|
|
DEVICE CHARACTERISTICS
|
|
|
|
|
|
| MAXIMUM RATINGS (@25°C Unless Otherwise Specified) |
| PARAMETER |
SYMBOL |
VALUE |
UNITS |
| Peak Pulse Power (tp=8/20µs waveform) |
PPP |
350 |
Watts |
| Lead Soldering Temperature |
TL |
260(10sec) |
°C |
| Operating Temperature Range |
TJ |
-55 to +150 |
°C |
| Storage Temperature Range |
TSTG |
-55 to + 150 |
°C |

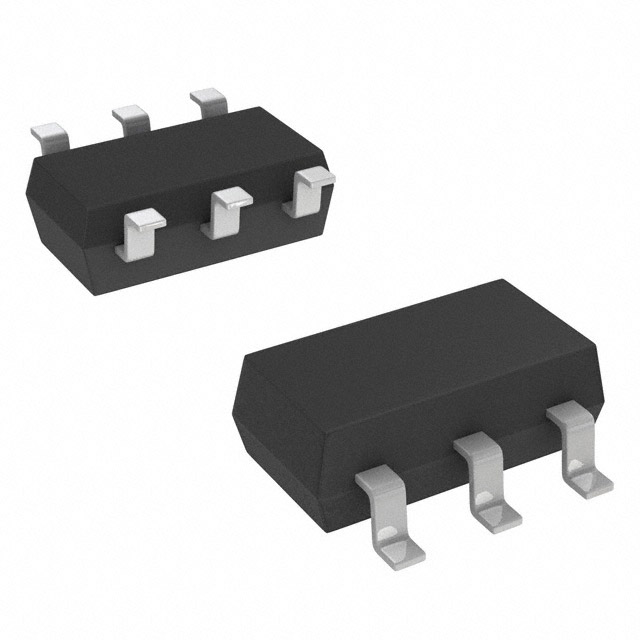

Surface-mount
