 贴片 |
|
|
| SMDJ系列 |

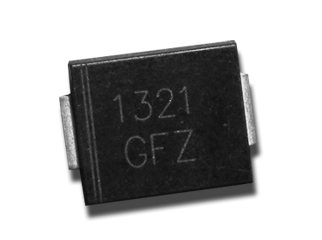

| Case: DO214AB;
3000 watts peak pulse power capability with a 10 x 1000 us;
Reverse Stand-Off Voltage: 5.0~170V;
Glass passivated junction;
Excellent clamping capability;
Fast response time: Typically less than 1.0ps from 0 volt to: BV min. |
|
| |
| 产品详细说明 : |
| Part Number |
Reverse |
Breakdown Voltage @IT |
Test |
Maximum |
Peak |
Reverse |
| Stand-Off |
Current |
Clamping |
Pulse |
Leakage |
| Voltage |
|
Voltage |
Current |
@VRWM |
| |
|
@IPP |
|
|
| (UNI) |
(BI) |
VRWM(V) |
VBR MIN.(V) |
VBR MAX.(V) |
IT(mA) |
VC(V) |
IPP(A) |
IR(μA) |
| SMDJ5.0A |
SMDJ5.0CA |
5 |
6.40 |
7.25 |
10 |
9.20 |
326.10 |
800 |
| SMDJ6.0A |
SMDJ6.0CA |
6 |
6.67 |
7.67 |
10 |
10.30 |
291.30 |
800 |
| SMDJ6.5A |
SMDJ6.5CA |
6.5 |
7.22 |
8.30 |
10 |
11.20 |
267.90 |
500 |
| SMDJ7.0A |
SMDJ7.0CA |
7 |
7.78 |
8.95 |
10 |
12.00 |
250.00 |
200 |
| SMDJ7.5A |
SMDJ7.5CA |
7.5 |
8.33 |
9.58 |
1 |
12.90 |
232.60 |
100 |
| SMDJ8.0A |
SMDJ8.0CA |
8 |
8.89 |
10.23 |
1 |
13.60 |
220.60 |
50 |
| SMDJ8.5A |
SMDJ8.5CA |
8.5 |
9.44 |
10.82 |
1 |
14.40 |
208.30 |
20 |
| SMDJ9.0A |
SMDJ9.0CA |
9 |
10.00 |
11.50 |
1 |
15.40 |
194.80 |
10 |
| SMDJ10A |
SMDJ10CA |
10 |
11.10 |
12.80 |
1 |
17.00 |
176.50 |
5 |
| SMDJ11A |
SMDJ11CA |
11 |
12.20 |
14.00 |
1 |
18.20 |
164.80 |
2 |
| SMDJ12A |
SMDJ12CA |
12 |
13.30 |
15.30 |
1 |
19.90 |
150.80 |
2 |
| SMDJ13A |
SMDJ13CA |
13 |
14.40 |
16.50 |
1 |
21.50 |
139.50 |
2 |
| SMDJ14A |
SMDJ14CA |
14 |
15.60 |
17.90 |
1 |
23.20 |
129.30 |
2 |
| SMDJ15A |
SMDJ15CA |
15 |
16.70 |
19.20 |
1 |
24.40 |
123.00 |
2 |
| SMDJ16A |
SMDJ16CA |
16 |
17.80 |
20.50 |
1 |
26.00 |
115.40 |
2 |
| SMDJ17A |
SMDJ17CA |
17 |
18.90 |
21.70 |
1 |
27.60 |
108.70 |
2 |
| SMDJ18A |
SMDJ18CA |
18 |
20.00 |
23.30 |
1 |
29.20 |
102.70 |
2 |
| SMDJ20A |
SMDJ20CA |
20 |
22.20 |
25.50 |
1 |
32.40 |
92.60 |
2 |
| SMDJ22A |
SMDJ22CA |
22 |
24.40 |
28.00 |
1 |
35.50 |
84.50 |
2 |
| SMDJ24A |
SMDJ24CA |
24 |
26.70 |
30.70 |
1 |
38.90 |
77.10 |
2 |
| SMDJ26A |
SMDJ26CA |
26 |
28.90 |
33.20 |
1 |
42.10 |
71.30 |
2 |
| SMDJ28A |
SMDJ28CA |
28 |
31.10 |
35.80 |
1 |
45.20 |
66.10 |
2 |
| SMDJ30A |
SMDJ30CA |
30 |
33.30 |
38.30 |
1 |
48.40 |
62.00 |
2 |
| SMDJ33A |
SMDJ33CA |
33 |
36.70 |
42.20 |
1 |
53.30 |
56.30 |
2 |
| SMDJ36A |
SMDJ36CA |
36 |
40.00 |
46.00 |
1 |
58.10 |
51.60 |
2 |
| SMDJ40A |
SMDJ40CA |
40 |
44.40 |
51.10 |
1 |
64.50 |
46.50 |
2 |
| SMDJ43A |
SMDJ43CA |
43 |
47.80 |
54.90 |
1 |
69.40 |
43.20 |
2 |
| SMDJ45A |
SMDJ45CA |
45 |
50.00 |
57.50 |
1 |
72.70 |
41.30 |
2 |
| SMDJ48A |
SMDJ48CA |
48 |
53.30 |
61.30 |
1 |
77.40 |
38.80 |
2 |
| SMDJ51A |
SMDJ51CA |
51 |
56.70 |
65.20 |
1 |
82.40 |
36.40 |
2 |
| SMDJ54A |
SMDJ54CA |
54 |
60.00 |
69.00 |
1 |
87.10 |
34.40 |
2 |
| SMDJ58A |
SMDJ58CA |
58 |
64.40 |
74.10 |
1 |
93.60 |
32.10 |
2 |
| SMDJ60A |
SMDJ60CA |
60 |
66.70 |
76.70 |
1 |
96.80 |
31.00 |
2 |
| SMDJ64A |
SMDJ64CA |
64 |
71.10 |
81.80 |
1 |
103.00 |
29.10 |
2 |
| SMDJ70A |
SMDJ70CA |
70 |
77.80 |
89.50 |
1 |
113.00 |
26.50 |
2 |
| SMDJ75A |
SMDJ75CA |
75 |
95.80 |
95.80 |
1 |
121.00 |
24.80 |
2 |
| SMDJ78A |
SMDJ78CA |
78 |
99.70 |
99.70 |
1 |
126.00 |
23.80 |
2 |
| SMDJ85A |
SMDJ85CA |
85 |
108.20 |
104.00 |
1 |
137.00 |
21.90 |
2 |
| SMDJ90A |
SMDJ90CA |
90 |
115.50 |
111.00 |
1 |
146.00 |
20.50 |
2 |
| SMDJ100A |
SMDJ100CA |
100 |
128.00 |
123.00 |
1 |
162.00 |
18.50 |
2 |
| SMDJ110A |
SMDJ110CA |
110 |
140.50 |
135.00 |
1 |
177.00 |
16.90 |
2 |
| SMDJ120A |
SMDJ120CA |
120 |
153.00 |
147.00 |
1 |
193.00 |
15.50 |
2 |
| SMDJ130A |
SMDJ130CA |
130 |
165.50 |
159.00 |
1 |
209.00 |
14.40 |
2 |
| SMDJ150A |
SMDJ150CA |
150 |
192.50 |
185.00 |
1 |
243.00 |
12.30 |
2 |
| SMDJ160A |
SMDJ160CA |
160 |
205.00 |
197.00 |
1 |
259.00 |
11.60 |
2 |
| SMDJ170A |
SMDJ170CA |
170 |
217.50 |
209.00 |
1 |
275.00 |
10.90 |
2 |
|
|
|
|
