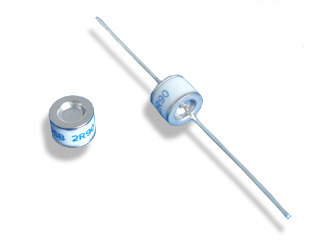

插件陶瓷气体放电管
Φ8*6-2R系列
Provide ultra-fast response to surge voltage from slow-rising surge of 100V/s to rapid-rising surge of 1KV/µs. Small :8*6mm Stable breakdown voltage. High insulation resistance. Low capacitance and insertion loss. Reliable to protect electrostatic surge.

  产品详细说明 :

Part Number DC Breakdown Voltage 100V/s Tolerance of  Vs Impulse spark-over Voltage
1kV/µs
Insulation Resistance Impulse Discharge Current 8/20µs(A) Capacitance(pF)
  V % V DC KA pF
2R70 70 ±25 ≤600 ≥1 25 10 ≤1.5
2R90 90 ±25 ≤600 ≥1 50 10 ≤1.5
2R150 150 ±25 ≤600 ≥1 100 10 ≤1.5
2R230 230 ±20 ≤700 ≥1 100 10 ≤1.5
2R250 250 ±20 ≤700 ≥1 100 10 ≤1.5
2R300 300 ±20 ≤900 ≥1 100 10 ≤1.5
2R350 350 ±20 ≤900 ≥1 100 10 ≤1.5
2R420 420 ±20 ≤1000 ≥1 100 10 ≤1.5
2R470 470 ±20 ≤1000 ≥1 250 10 ≤1.5
2R600 600 ±20 ≤1200 ≥1 250 10 ≤1.5
2R800 800 ±20 ≤1400 ≥1 250 10 ≤1.5
2R1000 1000 ±20 ≤1700 ≥1 250 10 ≤1.5
2R1600 1600 ±20 ≤2600 ≥1 250 10 ≤1.5
2R2000 2000 ±20 ≤3000 ≥1 300 10 ≤1.5
2R2500 2500 ±20 ≤4000 ≥10 300 10 ≤1.5
2R3000 3000 ±20 ≤4500 ≥10 300 10 ≤1.5
2R3500 3500 ±20 ≤5000 ≥10 300 10 ≤1.5
