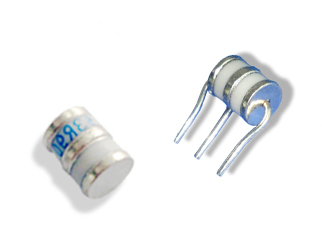

插件陶瓷气体放电管_深圳市深波电子有限公司

English

联系深波

关于深波

产品搜索：

防雷元件

Provide ultra-fast response to surge voltage from slow-rising of 100V/s to rapid-rising surge of 1KV/µs. Small ：6.0*8.0mm Stable breakdown voltage. High insulation resistance. Low capacitance and insertion loss. Reliable to protect electrostatic surge.

产品详细说明 :

Part Number	DC Breakdown Voltage 100V/s	Tolerance of Vs	Impulse spark-over Voltage 1kV/µs	Insulation Resistance		Impulse Discharge Current 8/20µs(A)	Capacitance(pF)
	V	%	V	GΩ	DC	KA	pF
3R75	75	±20	≤700	≥1.0	25	10	2
3R90	90	±20	≤600	≥1.0	50	10	2
3R100	100	±20	≤600	≥1.0	100	10	2
3R110	110	±20	≤600	≥1.0	100	10	2
3R150	150	±20	≤600	≥1.0	100	10	2
3R230	230	±20	≤650	≥1.0	100	10	2
3R250	250	±20	≤650	≥1.0	100	10	2
3R300	300	±20	≤800	≥1.0	100	10	2
3R350	350	±20	≤800	≥1.0	100	10	2
3R420	420	±20	≤900	≥1.0	250	10	2
3R470	470	±20	≤900	≥1.0	250	10	2
3R600	600	±20	≤1000	≥1.0	250	10	2
3R800	800	±20	≤1200	≥1.0	250	10	2
